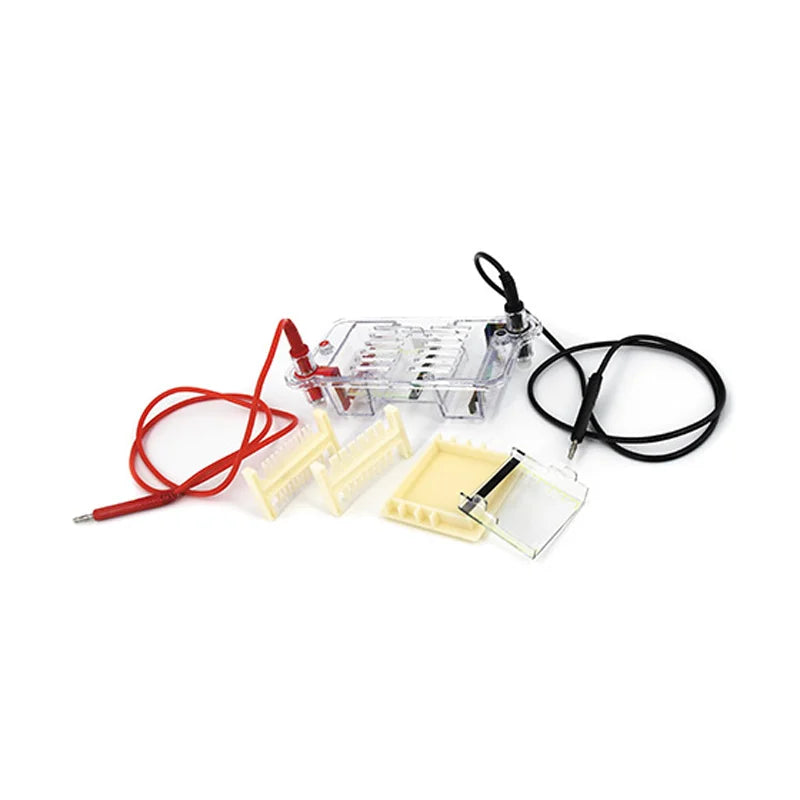

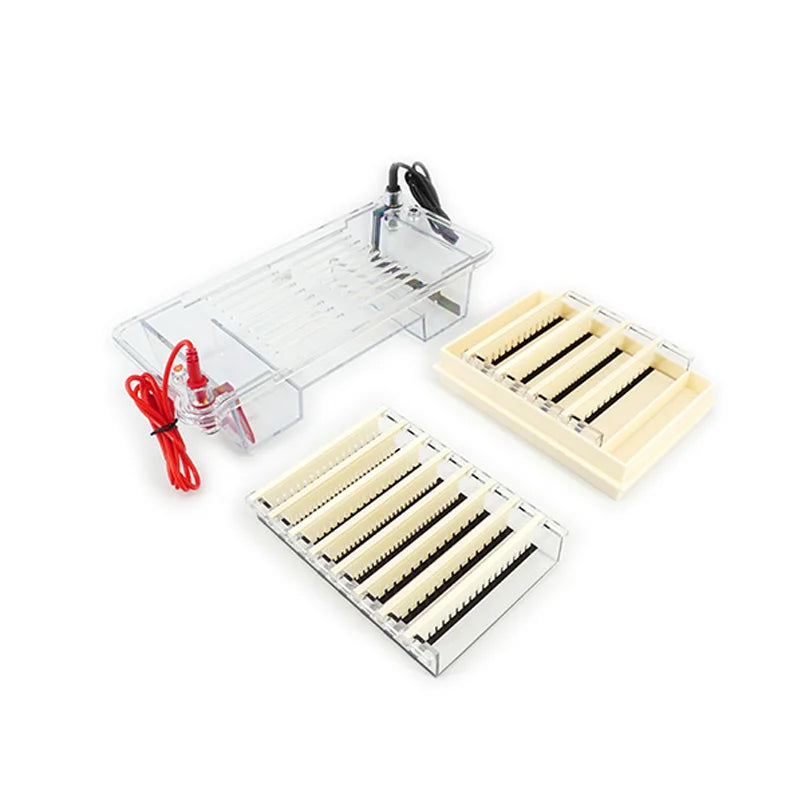

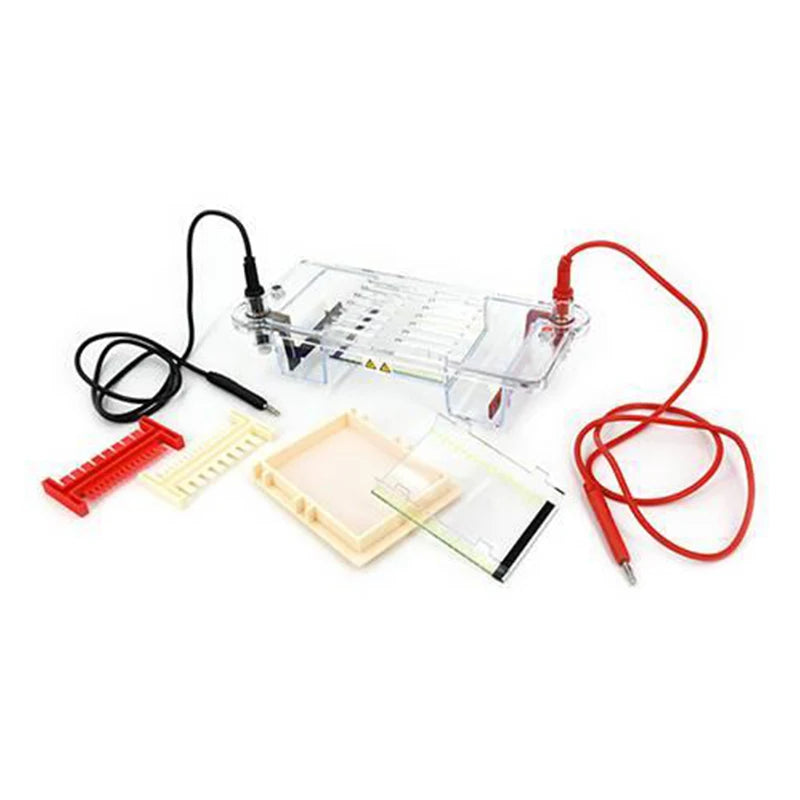

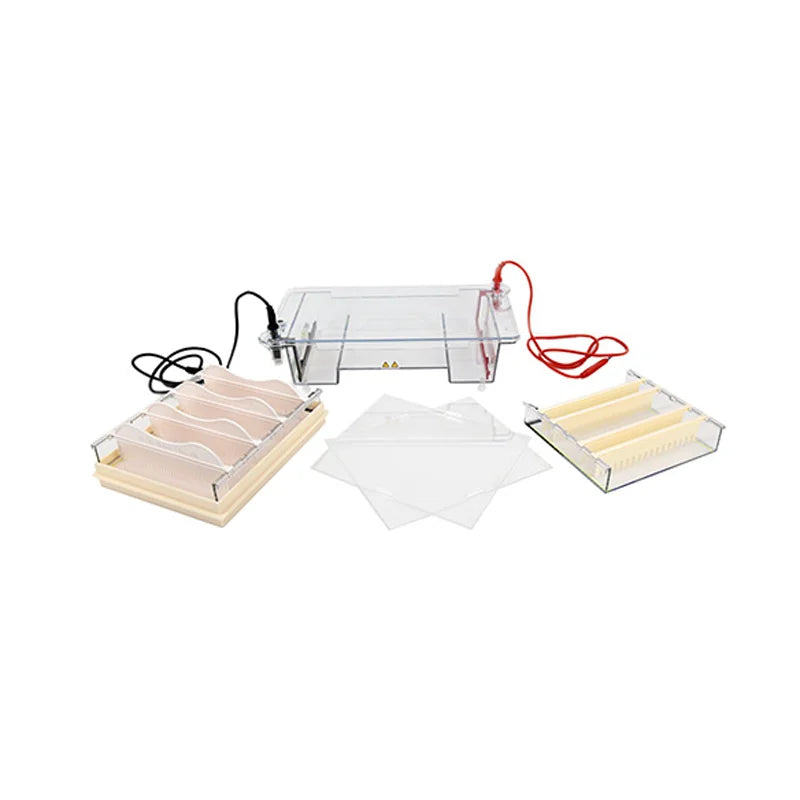

Horizontal Electrophoresis System

• Ideal for identification, isolation, preparation and molecular weight determination of DNA
• Glue machine mold forming, can make four different sizes of glue
• The transparent upper cover has a hole design, which is convenient for heat dissipation and observation.
• The gel tray has a fluorescent ruler for easy observation
• Highly flexible wire, open the cover and power off to ensure safety
• Polycarbonate injection molding, no leakage
• Bridge design, save buffer
• High temperature resistance, no deformation
• Limit function, precise operation
• Removable electrode holder and electrode head for thorough cleaning and maintenance

DYCP-31DN agar-agar level electrophoresis instrument specifications:
Size: (L×W×H) : 310×150×120mm
Gel plate size: (L×W) : large adhesive 120×120mm; Wide glue 60×120mm; Long glue 120×60mm; Small glue 60×60mm
Sample grid: 2+3 teeth (2.0mm thick), 6+13 teeth, 8+18 teeth (1.5mm thick), 11+25 teeth (1.0mm thick)
The sample can be added with volley gun
Weight: 1kg
Total buffer capacity: 650ml

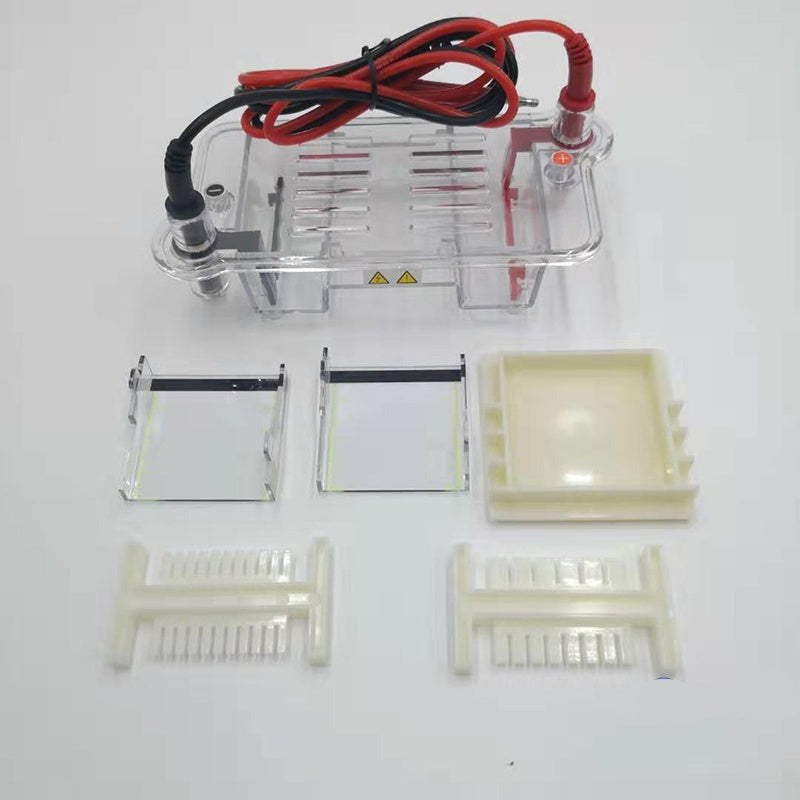

DYCP-31BN AGAR sugar level electrophoresis instrument specifications:

Appearance size: (L × W × H) : 197 × 96 ×100mm
Gel plate size: (L × W) : 60 × 60mm
Sample grid: 6 teeth, 8 teeth, 1.5mm thick, 11 teeth, 1.0mm thick, 1.5mm thick
Weight: 0.5kg
Total buffer capacity: 120ml

DYCP-32B agarose-level electrophoresis apparatus (Note) specifications:
Appearance size: (L × W × H) : 365 × 165 × 130mm
Gel plate size: (L × W) : 200 × 130mm, 150 × 130mm
Sample grid: 14, 26 teeth, 1.0mm thick, 18 teeth, 1.0mm, 1.5mm thick
Weight: 1.5kg
Total buffer capacity: 800ml

DYCP-31E Agarose-level electrophoresis Apparatus (Medium) specifications:
Appearance size: (L × W × H) : 360 × 195 × 135mm
Gel plate size: (L × W) : 200 × 160mm; 150 x 160mm
Sample grid: 17, 34 teeth 1.5mm thick can be added to the volute sample
Weight: 1.5kg
Total buffer capacity: 1000ml

DYCP-31CN Agarose-level electrophoresis apparatus (Note) specifications:
Appearance size: (L × W × H) : 270 × 115 × 110mm
Gel plate size: (L × W) : 100 × 70mm
Sample box: 8, 15 teeth, 1.0, 1.5mm thick
Weight: 1kg
Total buffer capacity: 260ml
