Mini/Mid-Size Horizontal Electrophoresis Tank for Rapid Agarose Gel Separation Electrophoresis of DNA and RNA Samples

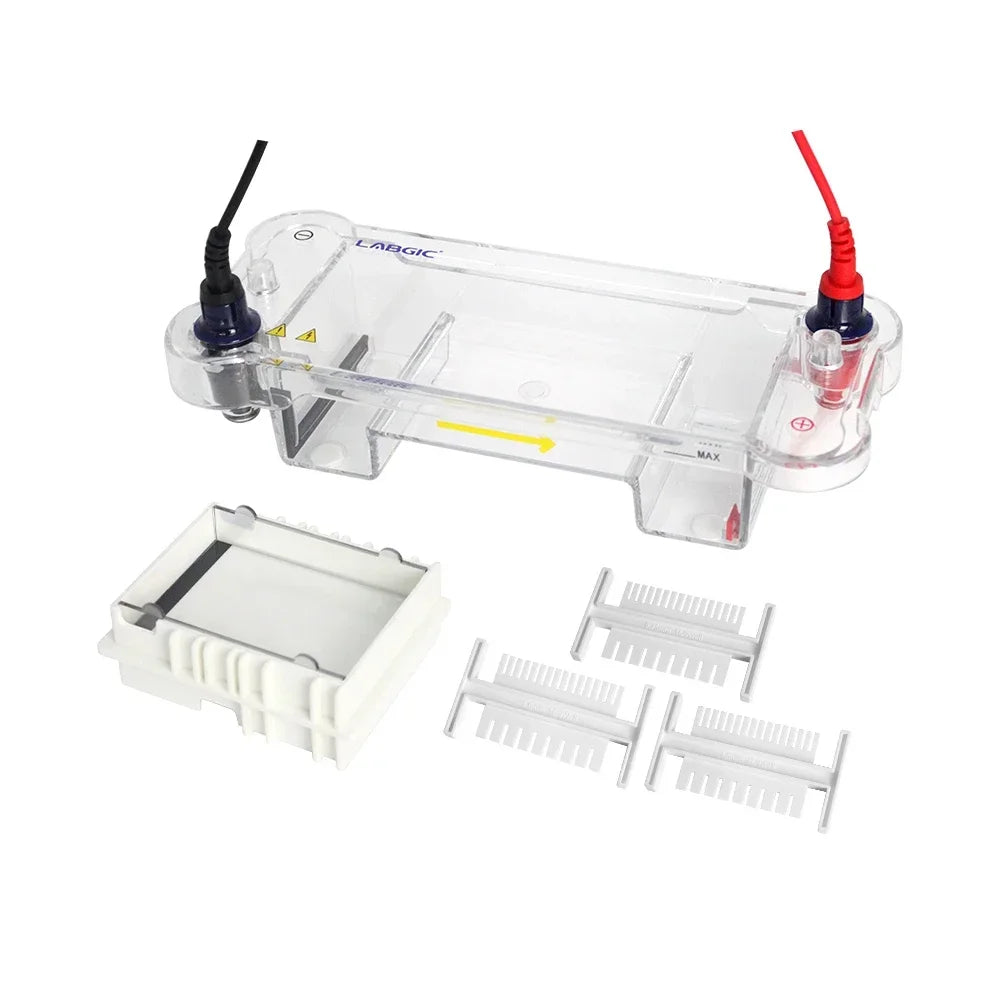

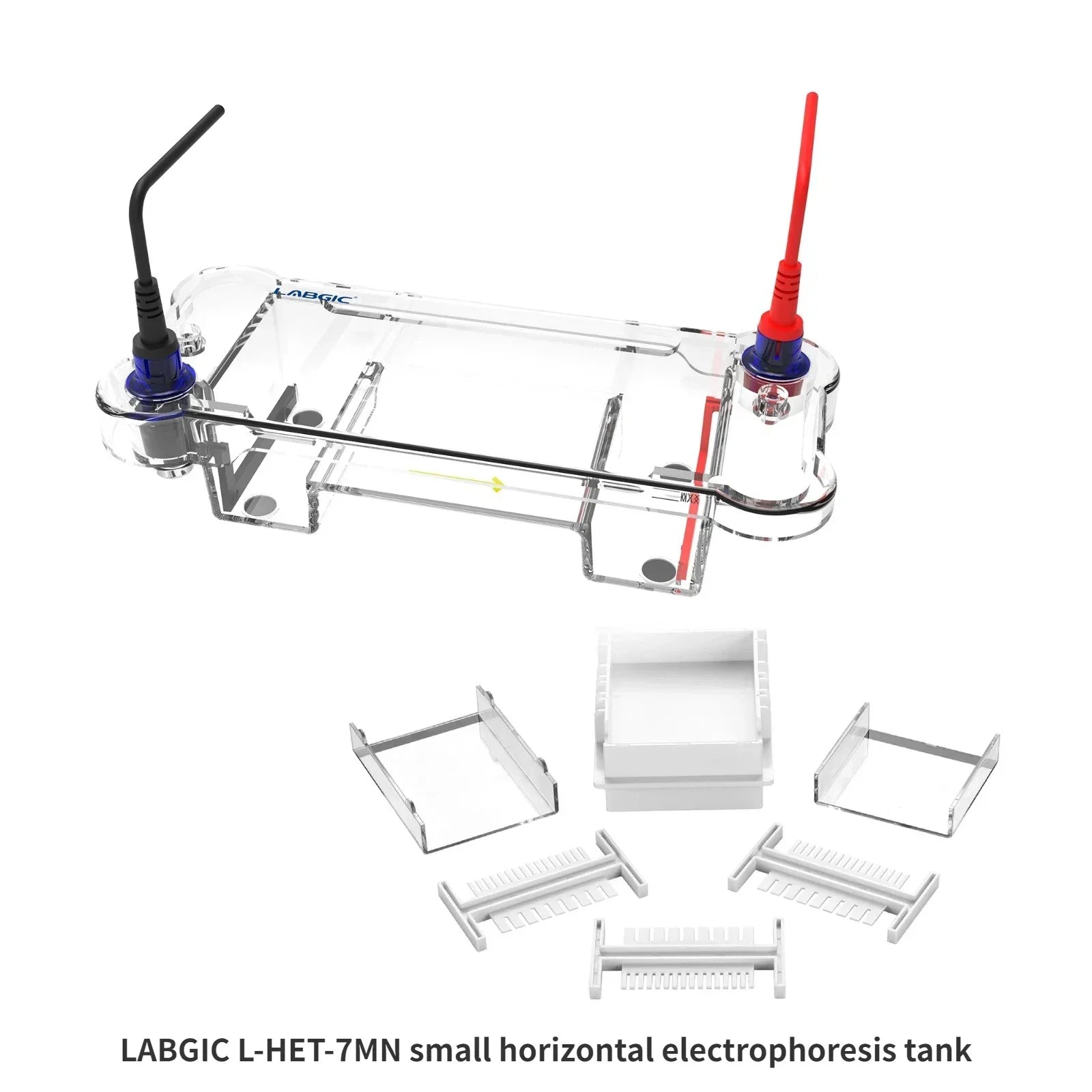

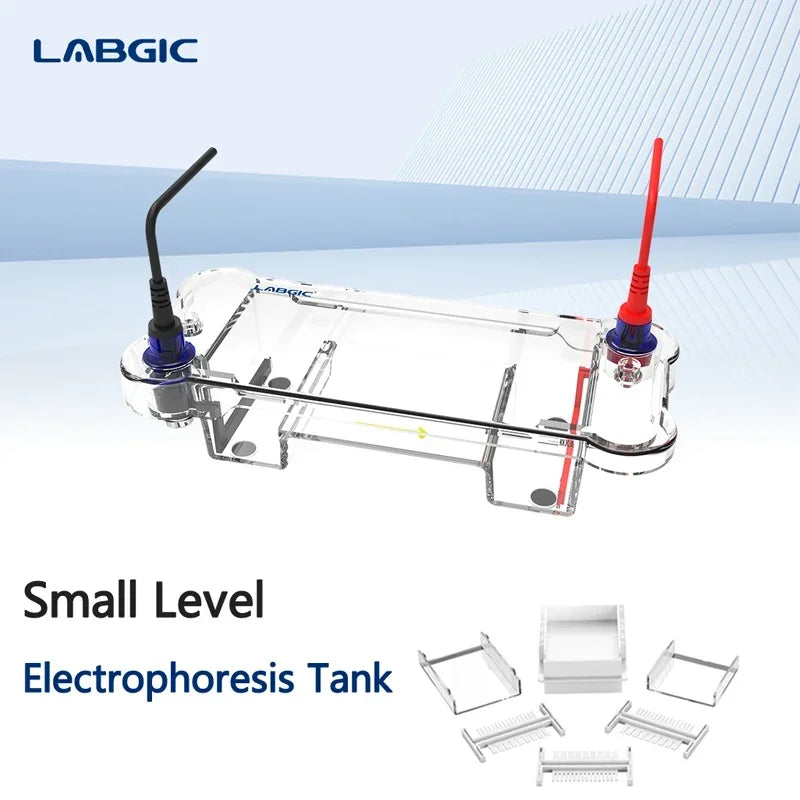

L-HET-7MN small horizontal electrophoresis tank

L-HET-7MN small horizontal electrophoresis instrument is mainly used for agarose gel rapid separation electrophoresis of a small amount of DNA and RNA samples. Special glue pouring station, easy to use. The tray has ear structure for easy handling. The instrument mainly includes a gel tray, a lower tank, an upper tank, a gel maker and a comb, etc. The gel making area is 7×10cm and 7×7cm.

Features:

• The separation and analysis of up to 32 samples can be completed within 20 minutes, which has unique advantages in the recovery of DNA fragments
• High temperature resistant gel tray, no deformation at 100°C high temperature, no need to dry the agarose to warm before pouring the gel
• No rubber sealing ring is used, and the movable electrode adopts an embedded design, so there is no worry about leakage
• Multi-purpose centrifuge tube rack with 100 holes and various apertures

Technical Parameters:

• Gel area: 70×70mm, 70×100mm
• Comb specifications: 0.75mm: 9 teeth/16 teeth; 1.0mm: 9 teeth/16 teeth; 1.5mm: 9 teeth/16 teeth
• Number of combs: 3 double-edged
• Buffer volume: 260ml
• Platinum electrode: φ0.25mm;
• Dimensions: 260×110×80mm (L×W×H)
• Weight: 1.5Kg

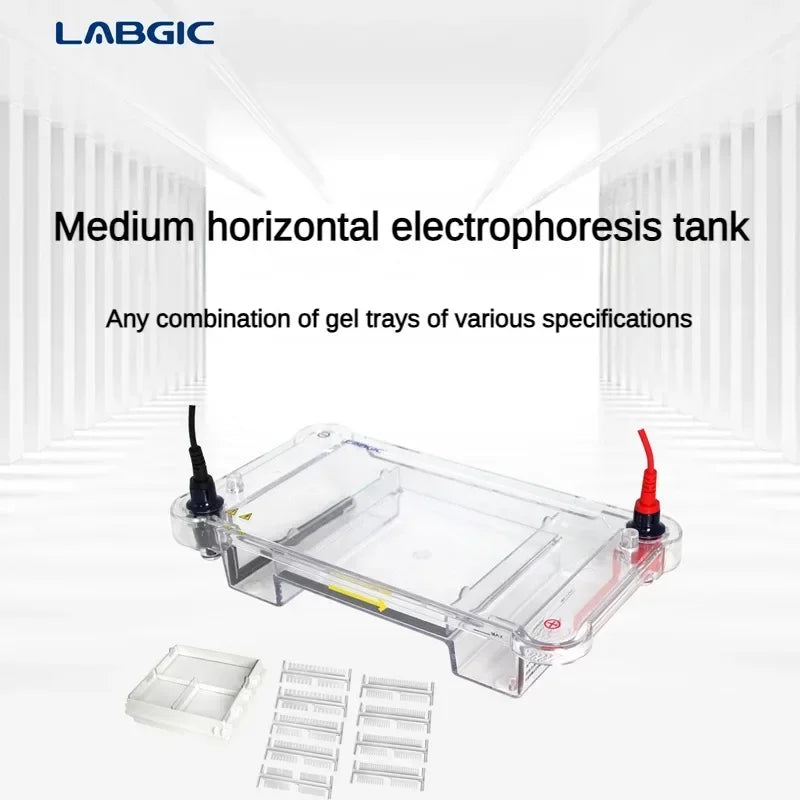

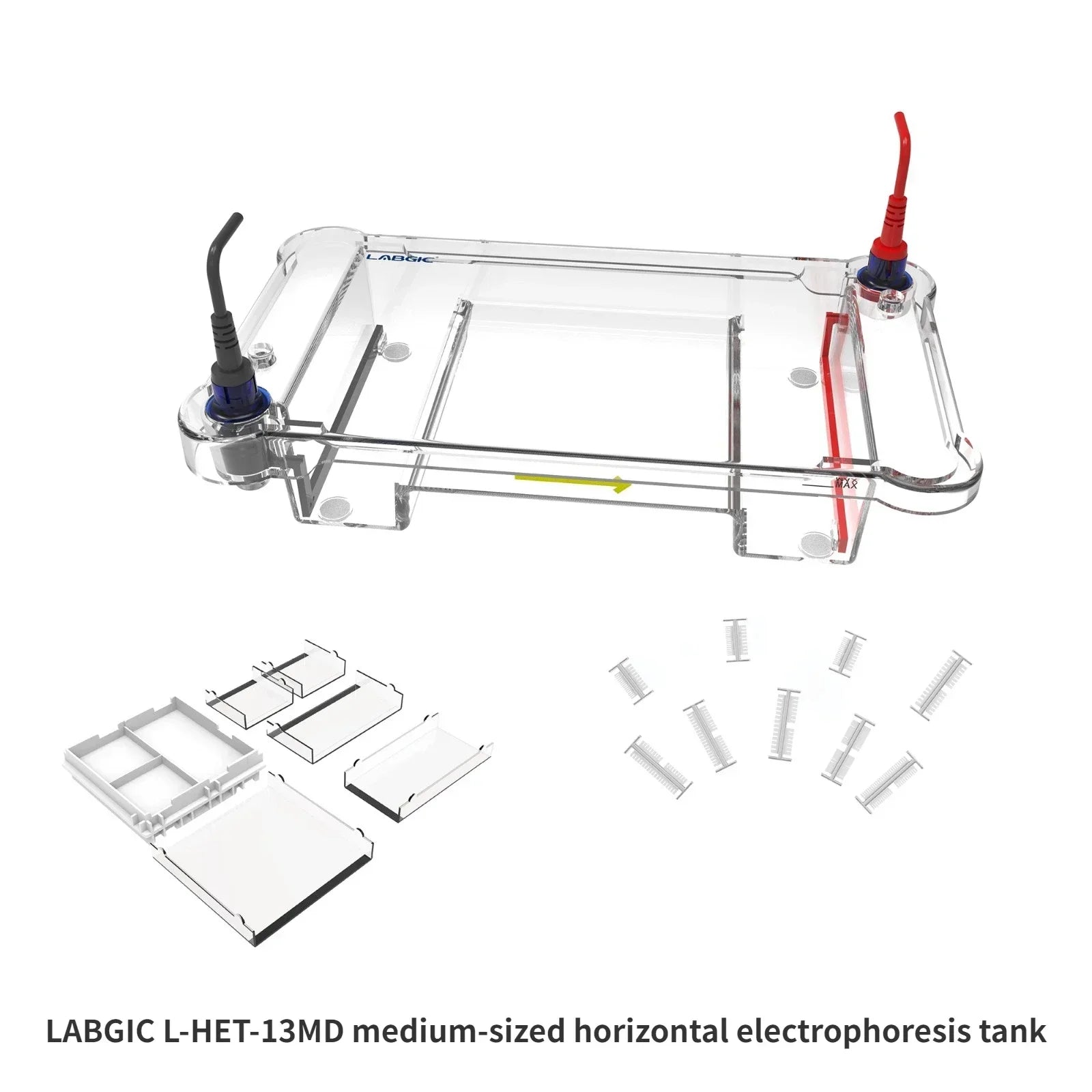

L-HET-13MD medium-sized horizontal electrophoresis tank

L-HET-13MD medium-sized horizontal electrophoresis instrument is mainly used for agarose gel rapid separation electrophoresis of a small amount of DNA and RNA samples. Special glue pouring station, easy to use. The tray has ear structure for easy handling. The instrument mainly includes gel tray, lower tank, upper tank, gel maker and comb, etc. The gel making area is 130×130mm, 130×65mm, 65×130mm, and 65×65mm.

Features:

• PCR electrophoresis: Comb 1mm 27 teeth * 4 rows, can run 108 samples at a time (including Marker)
• Any combination of gel trays of various specifications (W*L): 130×130mm; 130×65mm; 65×130mm; 65×65mm
• 14, 19, 27 tooth combs all support 8-channel and 12-channel gun sampling
• High temperature resistant gel tray, no deformation at 100°C high temperature, no need to dry the agarose to warm before pouring the gel
• No rubber sealing ring is used, and the movable electrode adopts an embedded design, so there is no worry about leakage
• Equipped with a 100-hole multi-purpose centrifuge tube rack with various apertures

Technical Parameters:

• Gel area (W*L): 130×130mm, 130×65mm, 65×130mm, 65×65mm
• Comb specifications: 0.75mm: 7+7 teeth/14 teeth, 9+9 teeth/19 teeth; 1.0 mm: 12+12 teeth/27 teeth; 1.5mm: 7+7 teeth/14 teeth, 9+9 teeth/ 19 teeth; 2.0mm: 3+2 teeth/3+3 teeth
• Buffer volume: up to 1000ml
• Platinum electrode: φ0.25mm
• Dimensions: 300×170×80mm (L×W×H)
• Weight: 2Kg
